High precision F9-20M miniature plane thrust ball bearing

Bearing brand：KOHO
Bearing model：F9-20M Bearing
Product series：F series plane thrust ball bearing
Manufacturer：KOHO

Contact Hotline

0755-84898749

  • Basic parameters
  • Technical parameter
  • Structure description
  • Application area

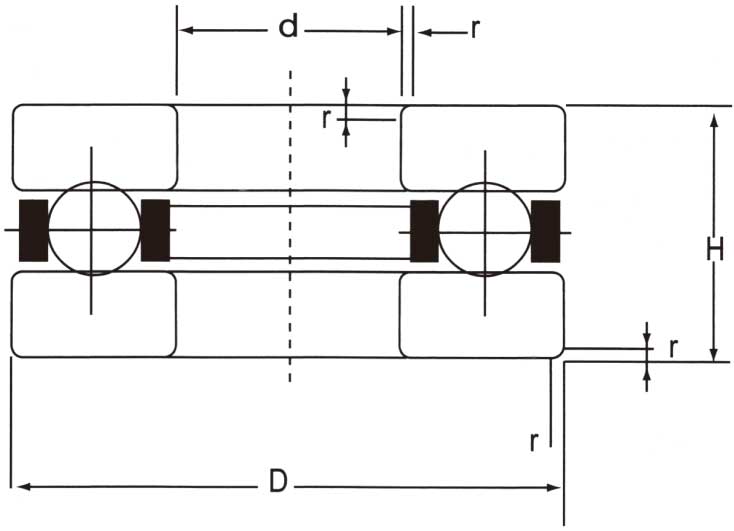

seriesF series-plane thrust ball bearing
modelF9-20M Miniature Planar Thrust Ball Bearing
Inner diameter (mm)9
Outer diameter (mm)20
Inner diameter of outer wheel d1(mm)9.2
Outer diameter of inner wheel D1(mm)19.8
Height (mm)7
Basic dynamic load rating

Cr(N)

3356
Basic static load rating

Cor(N)

2999
Allowable number of revolutionsgrease*1000rpm2500
Lubricant4500



Various types of micro motors, cooling fans, instruments and meters, printers, smart homes, precision instruments, mechanical equipment, household appliances, medical equipment, fishing gear, mining machinery, elevators and accessories industries, precision machine tools and other fields
